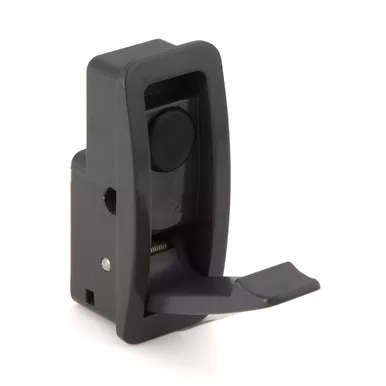

Sugatsune RECESSED HOOK NF-60, NF-60D Series
Features
• Hook comes in two different types: spring-loaded and soft-self closing.
• End of arm is equipped with small protrusion to prevent items from falling off.
• When closed, there is very little protrusion, making it safer and visually
appealing.
• When combined with the NF-50 bracket, can be used on sheet metal.
• Available in special colours, please contact us for details.
Remarks
Please take off the cushion rubber when installing on a wooden panel.
Option
NF-50: Bracket for sheet metal applications
Recommended screws
For wooden board
• Thickness 25 – 29mm : Countersunk head tapping screw 5×20
• Thinkness min 30mm : Countersunk head tapping screw 5×25
