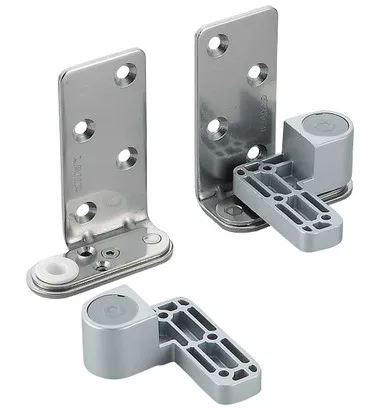

Sugatsune 2-WAY ADJUSTABLE PIVOT HINGE PH-01
• Vertically and laterally adjustable after installed.
• Sold in pairs (top and bottom), non-handed.
• Supplied with wood screw 4 × 30.
• Separate body and bracket for easy installation.
• Door Height: Max. 2300 mm (90-34/64″)
• Door Width: Max. 850 mm (33-15/32″)
• Door Weight: Max. 35 kg (77 lbs)/pair
• Door Thickness: 33~42 mm (1-19/64″~1-21/32″)
