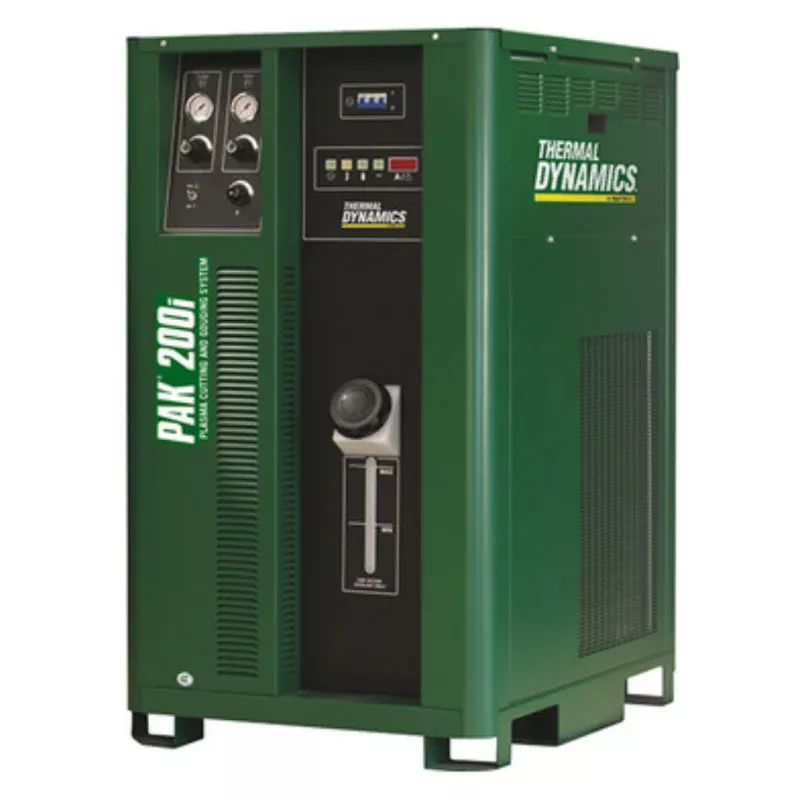

Thermal Dynamics PAK 200i (200 Amp) Plasma Cutting Power Source

Thermal Dynamics PAK 200i (200 Amp) Plasma Cutting Power Source

Features:

• 200 amps of Cutting PowerThis unit is capable of hand cutting at 200 amps with the ability to cut up to 2-3/4″ (70 mm) on Mild Steel. At full output this unit will cut 10 ipm (254 mm/min) on 2″ (51 mm) carbon steel.
• 100% Duty CycleThis machine offers 100% duty cycle at full output.
• Dual Gas CapabilityThe dual gas system ensures superior quality and performance on ferrous and non-ferrous materials. (Plasma Gas: Air, ArH2 Secondary Gas: Air, N2) High
• Gouging Removal RateWith the ability to remove up to 25 lbs (11.3 kg) of carbon steel per hour.
• Tip Saver for Optimal Tip LifeThis ensures that any accidental contact between the tip and the work at high power levels will not damage the tip.

Specifications Input Ratings 57 A @ 400 V, 3 ph, 50/60 Hz
60 A @ 380 V, 3 ph, 50/60 Hz
47 A @ 480 V, 3 ph, 50/60 Hz Severs Manual All Models in. Pierces 32 mm ( 1 1/4 in. ) Cuts Manual 40 – 0 mm ( 1 1/2 – 2 3/4 in. ) Weight 222 kg ( 490 lbs )

Please note, this item is not eligible for free shipping and heavy weight freight charges will apply. Please contact us at [email protected] for a freight quote.
