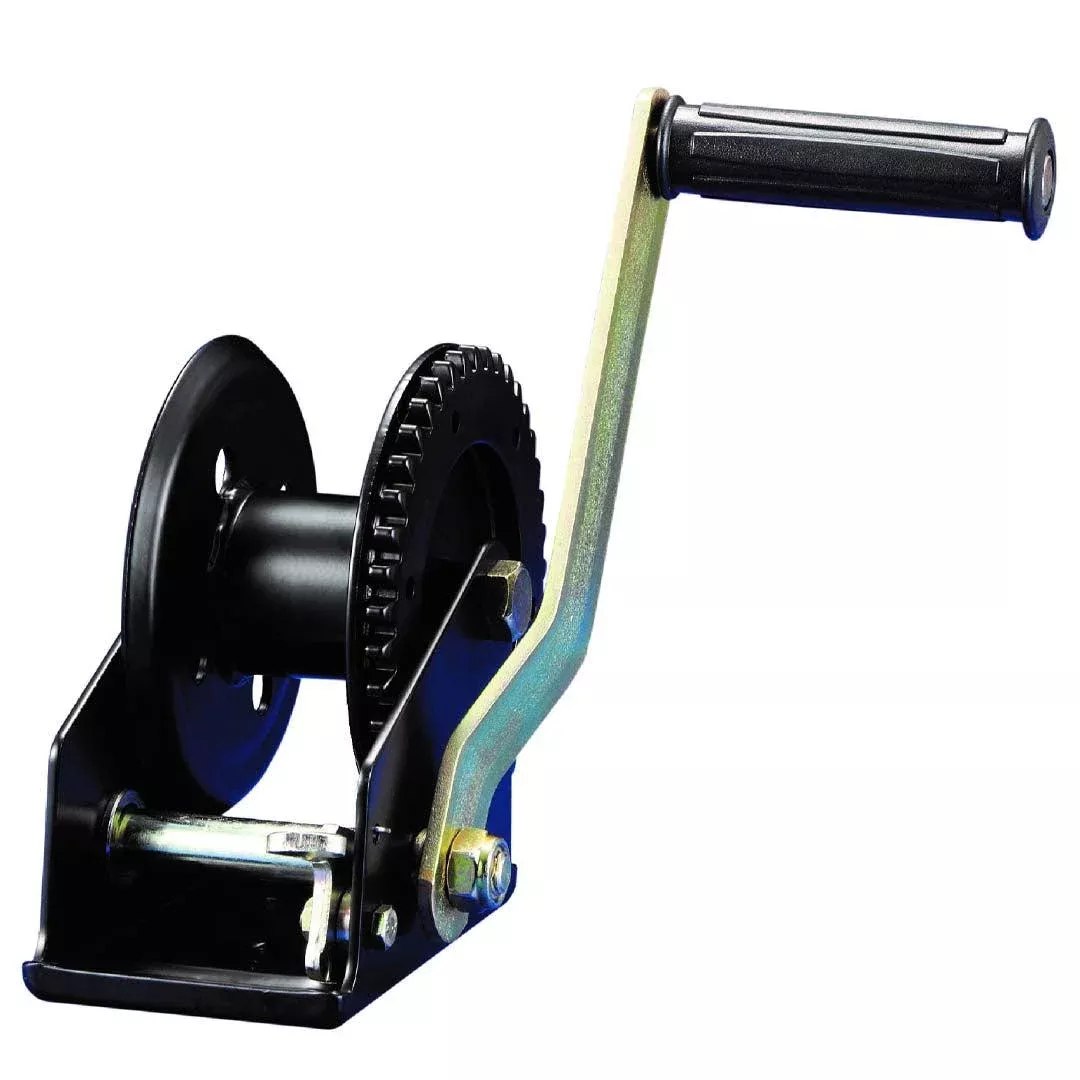

HW Hand Winch
Not for lifting
- 1200 lbs capacity
- Ability to disengage the gear to allow fast pay out of the cable
- Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
Certification:
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Temperature Range:
Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
| Product Code | Pulling Capacity (lbs) | Lifting Capacity (First Layer) | Lifting Capacity (Last Layer) | Hand Force Required (lbs) | Gear Ratio | Hub Diameter (in) | Handle Length (in) | Unit Weight (with handle) (lbs) | Unit Weight (with loop) | Cable Diameter (in.) | Cable Storage Cap. (ft.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HW-1200 | 1200 | 44.1 | 4.1:1 | 1.97 | 8.3 | 6.26 | 3/16 | 95 |
